635nm 50mW 50um Uniform Distribution Line Laser Mode for Industrail Robotics and Surface Defect Detection
Product Description
AIMLASER provides customized Uniform Line Laser Diode Modules with customization options, which use powell lenses and the laser intensity and light are well-distributed.
The uniform line laser modules' thinnest line can be 10um, fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also different from 3V to 12V DC. Our uniform distribution line laser model features a compact size, narrow line width, high stability and reliability. The generators project very thin line collimated beam lasers, and are widely used in machine vision guidance systems, industrial robotics, 3D scanning, medical instruments, surface defect detection etc.
The 635nm 50mW energy uniformly distributed red line laser module subassembly focus is adjustable.
Specifications
| ITEMS | PARAMENTERS |
| Model Number | Powell Lens Uniform Distribution Line Laser Diode Module |
| Wavelength | 635nm |
| Output Power | ≤50.0mW |
| Output Aperture | Φ4.0mm |
| Line Width | ≤50um@100mm |
| Fan Angle | 30° |
| Input Voltage | 3~12.0VDC |
| Working Current | <70mA |
| Driver Mode | CW, TTL, Analog Modulation, Digital Modulation |
| Dimensions | Φ12x45mm |
| Divergence | 0.3mrad |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constanct Current (ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Optics | Powell Lens |
| Material | Aluminum Black Anodized (Insulation) |
| Life Time | 10,000Hrs |
Features
1. Compact size, narrow line width, high stability and reliability.
2. Long Lifetime and Ultra-lower Noise.
3. Using high quality powell lens.
4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
5. Conform to ROHS, FDA, IEC, SGS standards.
6. Provide one-year warranty and customized solutions.
Applications
The 635nm 50mW powell lens uniform line laser diode modules applications:
| ● Machine Vision System | ● 3D Scanning System |
| ● Laser Profilometer | ● Laser Measuring Profilometer |
| ● Laser Contour Scanner | ● Laser Scribe Positioning Machines |
| ● Machine Visual Products | ● Industrial Visual Measurement System |
| ● Machine Vision Cameras | ● Industrial Robot Visual Guidance System |
| ● Industrial Smart Cameras | ● Automatic Equipment Visual Positioning System |
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
Hot Tags: powell lens uniform line laser diode module, light uniformly distribution, laser intensity energy power beam line well distributed, China, factory, suppliers, providers, manufacturers, wholesale, customized, quotation, buy, bulk, free sample.
Product Tags:
|
|

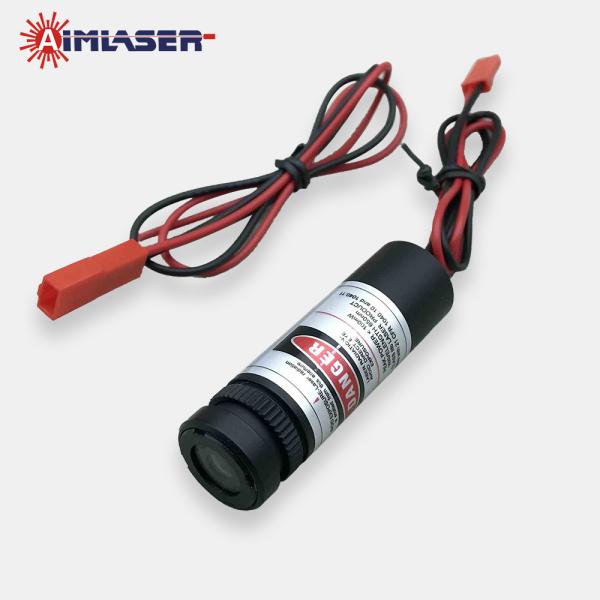

Uniform Distribution Line Laser Module 635nm 50mW 50um For Industrail Robotics Guidance Images
|
